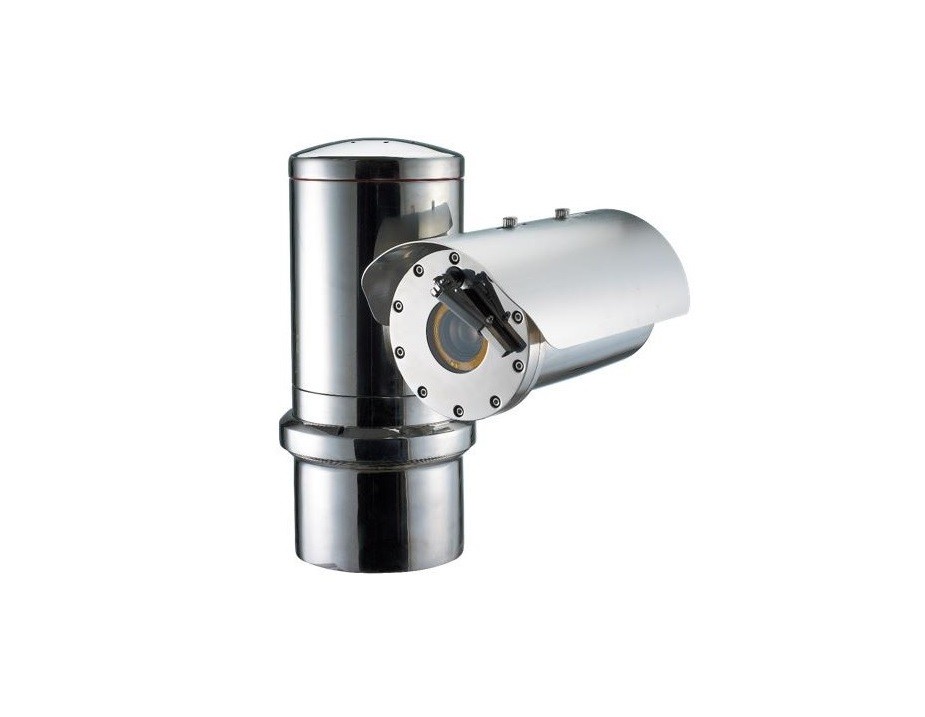

Wisenet Explosion Proof Camera TNO-6320E
RP. 134,475,000
  • Full-HD(1920×1080)
  • 60fps @2M, Optical 32x, Digital 16x
  • [email protected](color) , [email protected](B/W)
  • Wide Dynamic Range 120dB
  • Intelligent VA ( Face Detection, Tampering, Virtual Line, Appear/Disappear, Enter/Exit )
  • Explosion-proof Certificate : ATEX EX II 2 GD, Ex d IIC Gb T6 / Ex tb IIIC Db T(85C)
  • Stainless 316L, Built-in Wiper, IP67, IK10
  • Operating Temp : -40~60
  • 24VAC
  • Wisenet III
  • SNZ-6320
Video
Imaging Device 1/2.8" 2MP CMOS
Effective Pixels 1944(H)x1104(V)
Min. Illumination Color: 0.15Lux(F1.6, 1/30sec)
B/W: 0.015Lux(F1.6, 1/30sec)
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6 (Wide)~F4.4 (Tele)
Angular Field of View H: 62.8˚(Wide)~2.23˚(Tele) / V: 36.80˚(Wide)~1.26˚(Tele)
Min. Object Distance 1.5m(59.06ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Operational
Camera Title Displayed up to 45 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅢ
Digital Image Stabilization Support
Defog Support
Motion Detection 4ea, rectangular zone
Privacy Masking 32ea, rectangular zone
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Face detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
NAS recording at event triggers
Alarm output
Wiper Support
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.264: Main/Baseline/High, MJPEG
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec Manual(5ea area)
Bitrate Control H.264: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S
SUNAPI (HTTP API)
SVNP 1.2
Wisenet open platform
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11,~MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory 512MB RAM, 128MB Flash
Environmental
Operating Temperature / Humidity -40°C~+60°C (-40°F~+140°F) / Less than 90% RH
* Start up should be done at above -30°C
Storage Temperature / Humidity -30°C~+60°C (-22°F~+140°F) / Less than 90% RH
Certification IP67, IK10
CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67
Ex tb IIIC T85°C Db
Electrical
Input Voltage 24VAC
Power Consumption 24VAC: Max 28W
Mechanical
Color / Material Silver / Stainless(SUS316L)
Product dimensions / weight Ø162 x 244mm(Ø6.38 x 9.61"), 7Kg(15.43 lb)
