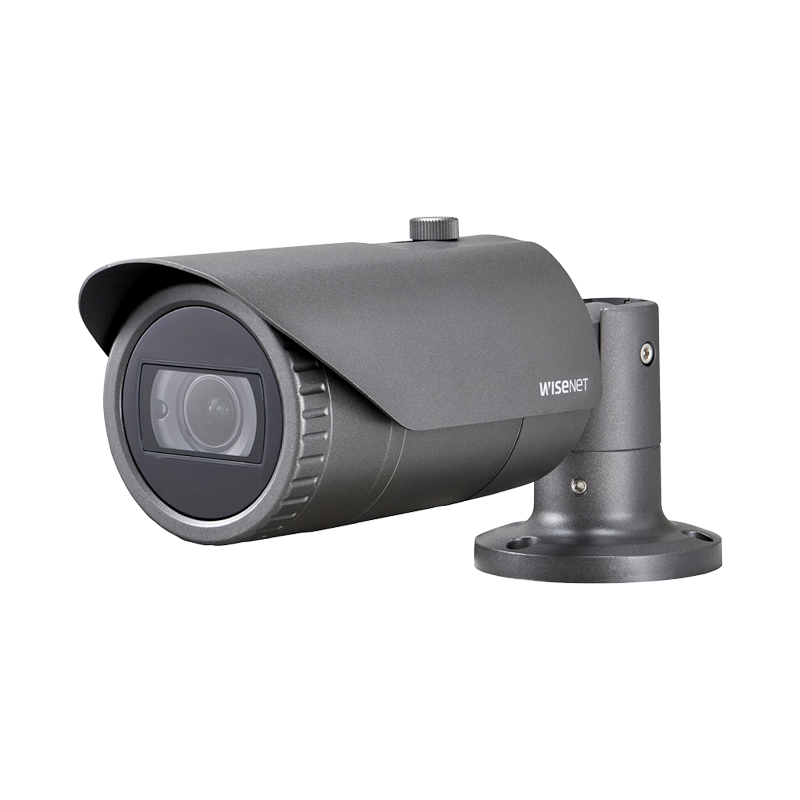

Wisenet AHD Camera HCO-6080R
RP. 4,950,000
  • Full HD resolution
  • [email protected](Color), 0Lux(B/W : IR LED on)
  • 3.2~10mm(3.1x) motorized V/F lens
  • Day & Night(ICR), WDR(120dB)
  • SSNRIV, Motion detection
  • IR viewable length : 98 feet, IP66, IK10, Dual power
  • Transmission ditance Max.500m
  • Easy installation (Plug & play), Dual power, RS-485
Video
Imaging Device 1/2.8" 2MP CMOS
Effective Pixels 1945(H)x1097(V)
Min. Illumination Color : 0.11Lux(F1.6, 30IRE)
BW : 0Lux(IR LED on)
Video Out BNC(AHD / TVI / CVI / CVBS Selectable)
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris
Operational
IR Viewable Length 30m(98.43ft)
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRâ…£
Defog Support
Motion Detection 4ea
Privacy Masking 8ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection
Alarm I/O MD output 1ea
Alarm Triggers Analytics
Alarm Events Alarm output
Coaxial Protocol ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol)
CVBS : Pelco-C(Coaxitron)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Network
Resolution 1920x1080
Max. Framerate 30fps / 25fps(60Hz / 50Hz)
Environmental
Operating Temperature / Humidity -30°C ~ +55°C(+22°F ~ +131°F) / Less than 90% RH
Certification IP66, IK10
Electrical
Input Voltage 24VAC, 12VDC
Power Consumption Max 5.8W
Mechanical
Color / Material Dark grey / Aluminum
Product dimensions / weight Ø78.0x259.8mm(3.07x10.23"), 948g(2.09 lb)

Unit Termasuk

Unit Utama
